Volumetric Measurements with Drone Data | Hammer Missions



Overview


In our recent post discussing 'Using Measurements In Hammer Missions' we briefly looked at calculating the volume of an area with Hammer Missions.


In this post, we will be digging deeper into how to create volumetric measurements using Hammer Missions.


Volumetric measurements, as the title suggests, are used for measuring the volume of an area. This can be very useful for calculating various applications for example spare earth mass on a building site or scrap waste to be removed.


The measurements are currently calculated in m3 or meters cubed.


Before You Start


Measurements shown in this post have been created on a 3D Model that has been processed in the Hammer Hub


To create a 3D Model in the Hammer Hub you would first have to collect your data in the field using the Hammer App


Once your data has been collected you can upload that data to the Hammer Hub and then process it into a 3D Model.


For more information please see the link below:


Processing Drone 3D Models



Making Volumetric Measurements In Hammer Missions


In this demo, we will be using the 3D map in full screen.


1: Volumetric measurements in Hammer Missions are calculated using the fourth icon on the menu at the top of the 3D Model as shown below in red:



2: With the volumetric tool selected draw a polygon around the area you wish to measure the volume of by clicking a dot in each of the corners of the desired area.



3: Now the area has been selected press the tick icon as shown below in red.



4: This will calculate the volume of the area you have selected as shown below.

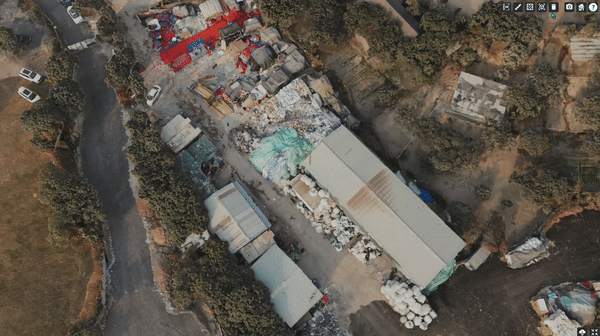

Volumetric Measurements on Drone Data | Hammer Missions
Volumetric Measurements on Drone Data | Hammer Missions

5: You will see from the video below that the volume is measured at height to give you an accurate representation of the volume of the mass that you are trying to measure.



6: To delete this measurement select the bin icon and then select one of the blue dots to remove the volume measurement as shown below:




Summary


We hope this guide has helped you understand how to Make Volumetric Measurements Using Drone 3D Models With Hammer Missions.


If you'd like to learn more about how to produce high-quality data and get the most out of your drone missions, please feel free to visit our learning resources


If you haven't got a Hammer account as of yet and would like to try Hammer Missions you can get started on our free trial.


To learn more about our enterprise solutions, including mission collaboration, data processing, and AI solutions, please contact us at team@hammermissions.com


We look forward to hearing from you.

- Team at Hammer Missions
