How to Process Your Thermal Data with Hammer Missions?


Thermal Data Processing | Hammer Missions
Thermal Data Processing | Hammer Missions

Overview


With the introduction of thermal cameras fitted to drones, the inspection industry for those assets that require thermal data has become easier to obtain.


Here at Hammer Missions, we have created the perfect workflow for your thermal data enabling you to collate and process your data through the Hammer Hub


In this tutorial, we will look at how you can achieve this.


Please note that Hammer Missions only supports processing of thermal images in the 'Iron-bow' palette at the moment.

Processing Thermal Data with Hammer Missions


This tutorial assumes that you have already been to the field and collected your data.


1: Create a new project within Data Analysis on the Hammer Hub, shown below in red.



2: With your new project created enter the project details and press continue.




3: Select your thermal images and drag them into the designated upload area or manually select the images for upload.




4: Now the images have been uploaded scroll to the bottom of the page and select Continue.



5: Select Create Project



6: Once the project has been created you will be presented with the project overview.


NB: Clicking on each one of the yellow dots (which are representative of where the drone took a photo) will bring up the corresponding picture.



7: To collate this data and create an overall view, or an ortho of the site, select process (highlighted below in red)




8: Select the 2D Map or 3D Model option.




9: Your thermal data will now be processed into a 2D Map or 3D Model, once it has finished you will have a full view of the data collated into one picture or 3D model.

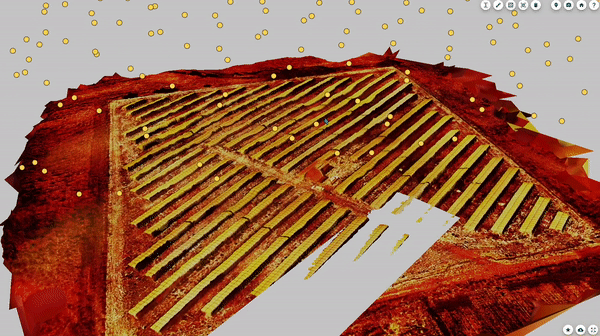

The example below is a 3D Model of Thermal Data.



NB: This can also be made full-screen by selecting the icon in the bottom right of the 3D window.


Thermal Data Processing | Hammer Missions
Thermal Data Processing | Hammer Missions


Summary


In this post, we looked at how to process your thermal data in Hammer Missions.


If you'd like to learn more about how to capture high-quality data and get the most out of your drone flights using our cloud-based platform, please feel free to visit our learning resources.


If you haven't got a Hammer account and would like to try Hammer Missions you can get started on our free trial.


To learn more about our enterprise solutions, including mission collaboration, data processing, and AI solutions, please contact us at team@hammermissions.com.


We look forward to hearing from you. — Team at Hammer Missions
